Energy Storage Solutions

With centralized energy storage as our core business, and commercial & industrial as well as residential energy storage products as our main product lines, we have built a multi-level product portfolio. Our solutions have been successfully applied across the power generation side, grid side, and user side, covering diverse scenarios such as thermal power frequency regulation, renewable energy storage for wind and solar, grid peak shaving and frequency regulation, integrated energy utilization, source-grid-load-storage, emergency backup power, and power trading. Our products have been exported to Europe, South Asia, Africa, and many other countries and regions worldwide.



Energy Storage Solutions

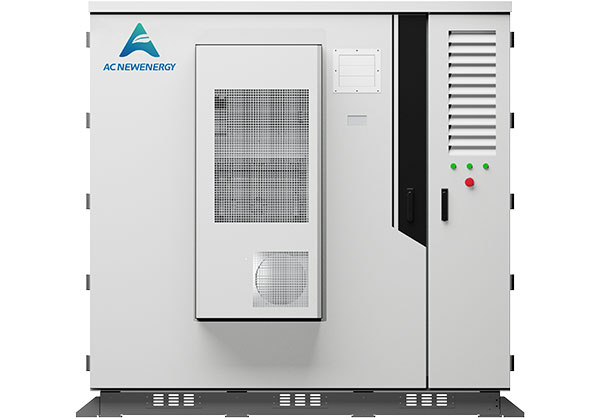

  • All-in-One Liquid-Cooling Cabinet Energy Storage System

    This product is a liquid-cooled energy storage system suitable for industrial parks and commercial entities. It utilizes high-capacity LFP battery cells, and the system adopts intelligent thermal management technology to ensure safety and effectively extend the system's cycle life. Pack-level targeted fire suppression technology utilizing perfluorohexane is used to ensure the safe operation of the product.

    Learn more

    Product features：

    • Long-life, high-safety LFP  battery cells.

    • Advanced liquid-cooling thermal management technology extends battery cycle life.

    • PACK-level and cabinet-level targeted fire suppression technology ensures safety and reliability.

    • High product integration reduces on-site installation and commissioning time.

    • It is standard-container shipping compatible and supports multi-cabinet parallel connection for flexible deployment.


    ModelESS-C-JG261A-L
    AC Input/Output
    Rated Power125kW
    Rated Voltage AC230V/400V，3P+N+PE
    Rated Frequency50Hz/60Hz
    Power Factor0.8(Leading)~0.8(Lagging)
    Battery Parameters
    Rated Capacity261kWh
    DC Maximum Current172A
    Battery TypeLFP 3.2V / 314Ah
    Rated Voltage DC832V
    Rated Voltage Range728V~936V
    Battery Module166.4V / 52.249kWh
    System Configuration1P260S
    General Data
    Dimension (W×D×H)1050mm * 1350mm * 2350mm
    Weight~2700kg
    Cooling MethodLiquid-Cooling
    IP RatingIP54
    Operating Temperature-20°C ~ +45°C
    Relative Humidity5% ~ 95%(Non-condensing)
    Altitude≤2000m
    Noise Emission≤75dB
    Fire Extinguishing MediaAerosol
    CertificatesIE/CEN62477-1, IEC/EN 61000-6-2, 1EC/EN 61000-6-4, 1EC62619,
    G99, G100, AS47772, EN 50549-1, VDE-AR-N 4105, UN38 3

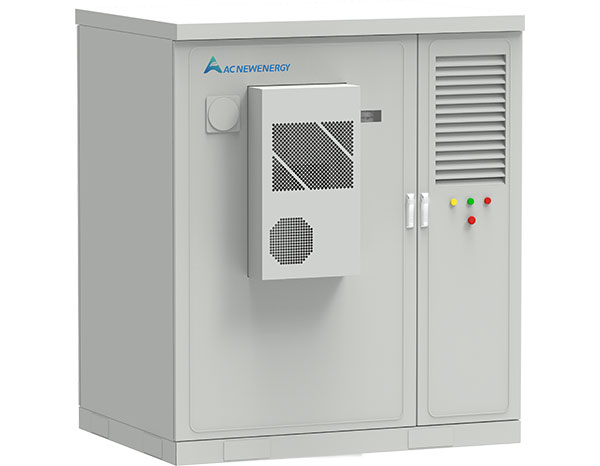

  • All-in-One Air-Cooling Cabinet Energy Storage System

    This product is an air-cooled energy storage system suitable for industrial parks and commercial entities. It utilizes high-capacity LFP battery cells, and the battery pack incorporates an advanced air-cooling thermal management system. Cabinet-level aerosol fire suppression technology is employed to ensure the safe operation of the product.

    Learn more

    Product features：

    • Long-life, high-safety LFP battery cells.

    • Intelligent air-cooling technology with self-adjusting capability.

    • Multi-layer protection strategy for safety and reliability.

    • Plug-and-play design with zero on-site debugging.

    • Supports multi-cabinet parallel connection for flexible Battery System Configuration.


    ModelESS-C-JG257A-F
    AC Input/Output
    Rated Power125kW
    Rated Voltage AC230V/400V，3P+N+PE
    Rated Frequency50Hz/60Hz
    Power Factor0.8(Leading)~0.8(Lagging)
    Battery Parameters
    Rated Capacity257kWh
    DC Maximum Current174A
    Battery TypeLFP 3.2V / 314Ah
    Rated Voltage DC819.2V
    Rated Voltage Range716.8V~921.6V
    Battery Module51.2V / 16.07kWh
    System Configuration1P256S
    General Data
    Dimension (W×D×H)2100mm × 1500mm × 2060mm
    Weight~2900kg
    Cooling MethodAir cooling
    IP RatingIP54
    Operating Temperature-20°C ~ +45°C
    Relative Humidity5% ~ 95%(Non-condensing)
    Altitude≤2000m
    Noise Emission≤75dB
    Fire Extinguishing MediaAerosol
    CertificatesIE/CEN62477-1, IEC/EN 61000-6-2, 1EC/EN 61000-6-4, 1EC62619,
    G99, G100, AS47772, EN 50549-1, VDE-AR-N 4105, UN38 3

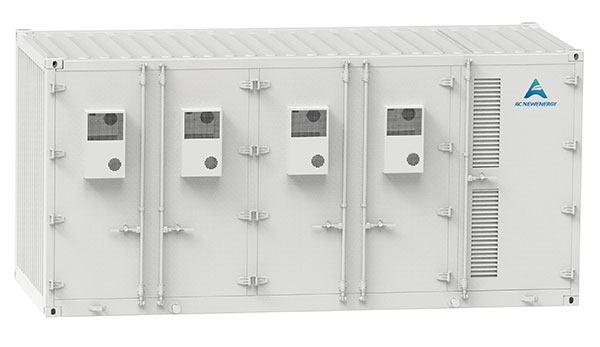

  • All-in-One Air-Cooling Container Energy Storage System

    This product is an integrated, air-cooled containerized energy storage system. It employs high-capacity LFP cells, with the battery pack utilizing advanced liquid cooling technology alongside aerosol fire suppression technology to ensure system longevity and safety.

    Learn more

    Product features：

    • Higher Energy Density： Upgraded cell capacity, utilization of cell-to-pack technology, and optimized internal space

    • Safety & Reliability：Multi-level protection from cell to system; Reliable LFP technology with high cycle stability

    • Optimized Modular Design：Scalable modular design,  configurable to suit any project size or application

    • Smart Management：Remote monitoring & updates；Smart energy management system


    ModelESS-C-20-2057A-F1-4HESS-C-20-2057A-F1-2H
    AC Input/Output
    Rated Power480kW1000kW
    Rated Voltage AC230V/400V，3P+N+PE
    Rated Frequency50Hz/60Hz
    Power Factor0.8(Leading)~0.8(Lagging)
    Battery Parameters
    Rated Capacity2057kWh
    DC Maximum Current84A×8174A×8
    Battery TypeLFP 3.2V / 314Ah
    Rated Voltage DC819.2V
    Rated Voltage Range716.8V~921.6V
    Battery Module51.2V / 16.07kWh
    System Configuration8P256S
    General Data
    Dimension (W×D×H)6058mm × 2438mm × 2896mm
    Weight~28t~30t
    Cooling MethodAir cooling
    IP RatingIP54
    Operating Temperature-20°C ~ +45°C
    Relative Humidity5% ~ 95%(Non-condensing)
    Altitude≤2000m
    Noise Emission≤75dB
    Fire Extinguishing MediaAerosol
    CertificatesIE/CEN62477-1, IEC/EN 61000-6-2, 1EC/EN 61000-6-4, 1EC62619,
    G99, G100, AS47772, EN 50549-1, VDE-AR-N 4105, UN38 3

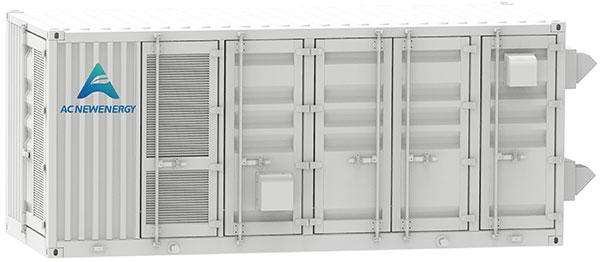

  • All-in-One  Liquid-Cooling Container Energy Storage System

    This system employs a standard 20-foot container design, integrating battery packs, power conversion systems (PCS), liquid-cooled thermal management, and fire suppression into a highly cohesive solution. It supports customizable capacity configurations (ranging from 1040 kW to 1560 kW and 2089 kWh to 2612 kWh), making it ideally suited for commercial and industrial applications that demand high flexibility, safety, and reliability.

    Learn more

    Product features：

    • Integrated power conversion system (PCS) enhances energy density and system efficiency while reducing balance-of-system costs.;

    • The battery system achieves an increased depth of discharge (DOD) and mitigates state of charge (SOC) imbalance across battery clusters.;

    • A maximum system capacity of 2,612 kWh to meet large-scale commercial and industrial energy demands.;

    • Aerosol fire suppression + water-based deluge systems + emergency ventilation, providing comprehensive safeguards for system security.


    ModelESS-C-20-2612A-L
    AC Input/Output
    Rated Power1250kW
    Rated Voltage AC230V/400V，3P+N+PE
    Rated Frequency50Hz/60Hz
    Power Factor0.8(Leading)~0.8(Lagging)
    Battery Parameters
    Rated Capacity2612kWh
    DC Maximum Current172A×10
    Battery TypeLFP 3.2V / 314Ah
    Rated Voltage DC832V
    Rated Voltage Range728V~949V
    System Configuration10P260S
    General Data
    Dimension (W×D×H)6058mm × 2438mm × 2896mm
    Weight~35t
    Cooling MethodLiquid Cooling (DC Side)
    IP RatingIP54
    Operating Temperature-20°C ~ +45°C
    Relative Humidity5% ~ 95%(Non-condensing)
    Altitude≤2000m
    Noise Emission≤75dB
    Fire Extinguishing MediaAerosol
    CertificatesIE/CEN62477-1, IEC/EN 61000-6-2, 1EC/EN 61000-6-4, 1EC62619,
    G99, G100, AS47772, EN 50549-1, VDE-AR-N 4110, UN38 3

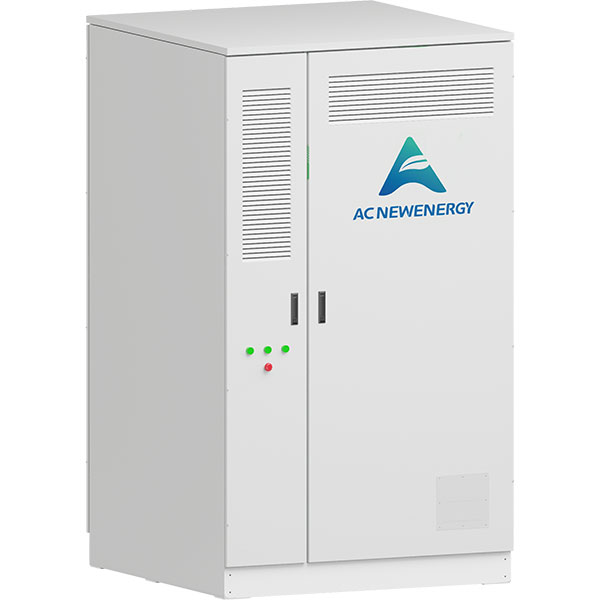

  • C &I Hybrid Energy Storage System

    This system features an integrated multi-purpose design with flexible unit capacity configurable between 112 kWh and 145 kWh, allowing customization to meet specific energy and power requirements.It supports photovoltaic and generator integration, as well as grid-connected/off-grid transition, making it highly suitable for providing reliable backup power in remote or weak grid environments.

    Learn more

    Product features：

    • It supports photovoltaic and generator integration, as well as grid-connected/off-grid transition, making it highly suitable for providing reliable backup power in remote or weak grid environments.

    • Supports multiple subsystems operating in parallel during off-grid mode;

    • 20ms transition from grid-connected to off-grid ensures uninterrupted power supply.

    • Modular, integrated design with simplified installation and maintenance, supporting real-time online monitoring.

    • Active and passive fire protection design eliminates hazards, ensuring secure system operation


    ModelESS-C-JG112A-FESS-C-JG128-FESS-C-JG145A-F
    PV Input
    Max.Input Power38.4kW*2
    Max.Input Current64A*2
    Input Voltage200V-800V/250Vdc
    Battery Parameters
    Battery TypeLFP 3.2V 314Ah
    Max. Charge/Discharge Current150A
    PACK Configuration1P16S
    Nominal Capacity112kWh128kWh145kWh
    AC(On-grid)
    Rated Power48kW55kW60kW
    AC Maximum Current76A87A96A
    AC Rated Voltage3P/N/PE;230V/400V AC
    Frequency50Hz/60Hz
    Power Factor0.8(Leading)~0.8(Lagging)
    THDi / THDi<5%(Rated power)
    AC(off-grid)
    Rated Power48kW55kW60kW
    AC Maximum Current76A87A96A
    AC Rated Voltage3/N/PE;230V/400V AC
    Frequency50Hz/60Hz
    Unbalanced Load1
    THDv<3%(Liner load)
    Switch Time< 20ms
    General Data
    Dimension (W×D×H)~1.5t~1.6t~1.7t
    Weight1088 * mm1320mm * 2300mm
    Cooling MethodAir cooling
    IP RatingIP54
    Operating Temperature-20°C ~ +45°C
    Relative Humidity5~95%RH(Non-condensing)
    Altitude≤ 2000m
    Noise Emission≤75dB(TBD)
    Fire Extinguishing MediaAerosol
    CertificatesIE/CEN62477-1, IEC/EN 61000-6-2, 1EC/EN 61000-6-4, 1EC62619,
    G99, G100, AS47772, EN 50549-1, VDE-AR-N 4105, UN38 3
