Slot Die Head

MANST specializes in the development, production, and application of slot die head and peripheral devices for the lithium battery industry. Different manufacturing processes benefit from our customized coating solutions, precisely tailored to the individual requirements of our customers.

Slot Die Head



Vacuum Drying

Dry vacuum pumps with high pumping capacity can be customized or adapted to the customer's pumping needs

Chamber Highly sealed chamber.

It supports fast and slow pumping, and can realize multi-stage adjustment in the vacuum pressure drop curve.

Learn more

Structural Module	Item	Specifications
Chamber	Material	Al+SUS+EPDM
Pressure drop curve requirements	Matched according to the characteristics of the liquid and customer needs
Vacuum hole	Array distribution
Vacuum breaking	N2 or CDA
Vacuum Pump	Brand	Imported or equivalent-grade chinese brands
Pumping capacity	Configured according to process requirements,
Type	Dry vacuum pump
Cooling water	≥3.5L/min, matched according to customer needs
Lift	Structure	Magnetic removable pin, vacuum bellows
Heater	Heating humidity	40-150℃，uniformity 5%

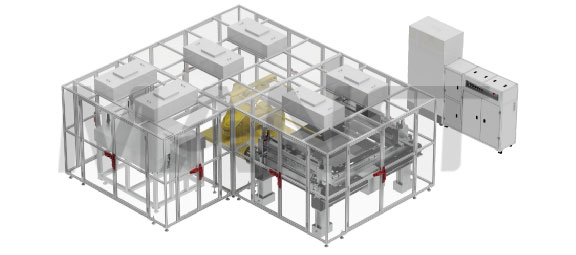

Flat Coating Machine for GW Mass Production

2400×1200mm GW Mass Production

Size：4200*4200*2100mm

Total Weight：18500Kg

Learn more

Parameters：
Item	Technical Specifications	Unit	Remark
Size	4200×4200×2100	mm
Total Weight	18500	Kg
Substrate Size	2400×1200	mm
Substrate Thickness	2.0~4.0	mm
Coating Width	2300	mm
Uniformity	≤5%		~500nm，10mm removal of coating at edges
Tact time	~82	sec
Viscosity Adaptability	1~70	cp

Flat Coating Machine for Hundred Megawatt Pilot Line

1200×1600mm Hundred Megawatt Pilot Line

Size：3700*2600*1700mm

Total Weight：7000Kg

Learn more

Parameters：
Item	Technical Specifications	Unit	Remark
Size	3700×2600×1700	mm
Total Weight	7000	Kg
Substrate Size	1200×1600	mm
Substrate Thickness	2.0~4.0	mm
Coating Width	1200	mm
Uniformity	≤5%		~500nm，10mm removal of coating at edges
Tact time	95	sec
Viscosity Adaptability	1~70	cp

Flat Coating Machine for Hundred Megawatt Pilot Line

1200×600mm Hundred Megawatt Pilot Line

Size：2400*2600*1700mm

Total Weight：4600Kg

Learn more

Parameters：
Item	Technical Specifications	Unit	Remark
Size	2400×2600×1700	mm
Total Weight	4600	Kg
Substrate Size	1200×600	mm
Substrate Thickness	2.0~4.0	mm
Coating Width	1200	mm
Uniformity	≤5%		~500nm，10mm removal of coating at edges
Tact time	60	sec
Viscosity Adaptability	1~70	cp

Flat Coating Machine for Hundred Megawatt Pilot Line

600×1200mm Hundred Megawatt Pilot Line

Size：3000*2000*1700mm

Total Weight：5000Kg

Learn more

Parameters：
Item	Technical Specifications	Unit	Remark
Size	3000×2000×1700	mm
Total Weight	5000	Kg
Substrate Size	600×1200	mm
Substrate Thickness	2.0~4.0	mm
Coating Width	600	mm
Uniformity	≤5%		~500nm，10mm removal of coating at edges
Tact time	80	sec
Viscosity Adaptability	1~70	cp

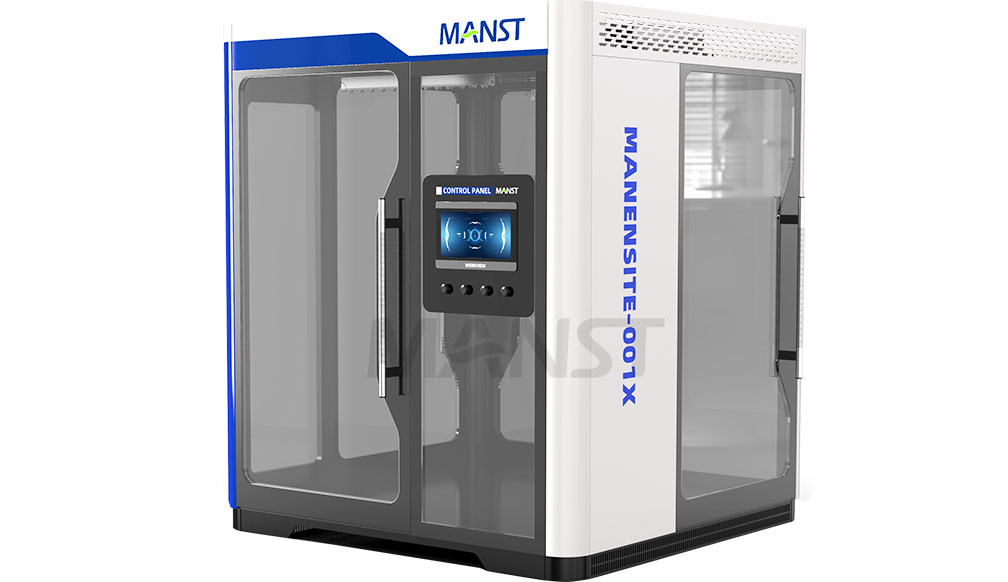

Flat Coating Machine for Desktop R&D

Modular design, customizable according to customer requirements

Coating size: 330*430mm, downward compatible

Coating film thickness range: 150nm-200um (depending on the properties of the coating liquid)

Learn more

Parameters：
Item	Technical Specifications	Unit	Remark
Size	1280×820×2200	mm
Total Weight	650	Kg
Substrate Size	330×430	mm
Substrate Thickness	2.0~4.0	mm
Coating Width	330	mm
Uniformity	≤5%		~500nm，10mm removal of coating at edges
Tact time	Manual	sec
Viscosity Adaptability	1~70	cp
